BT-100

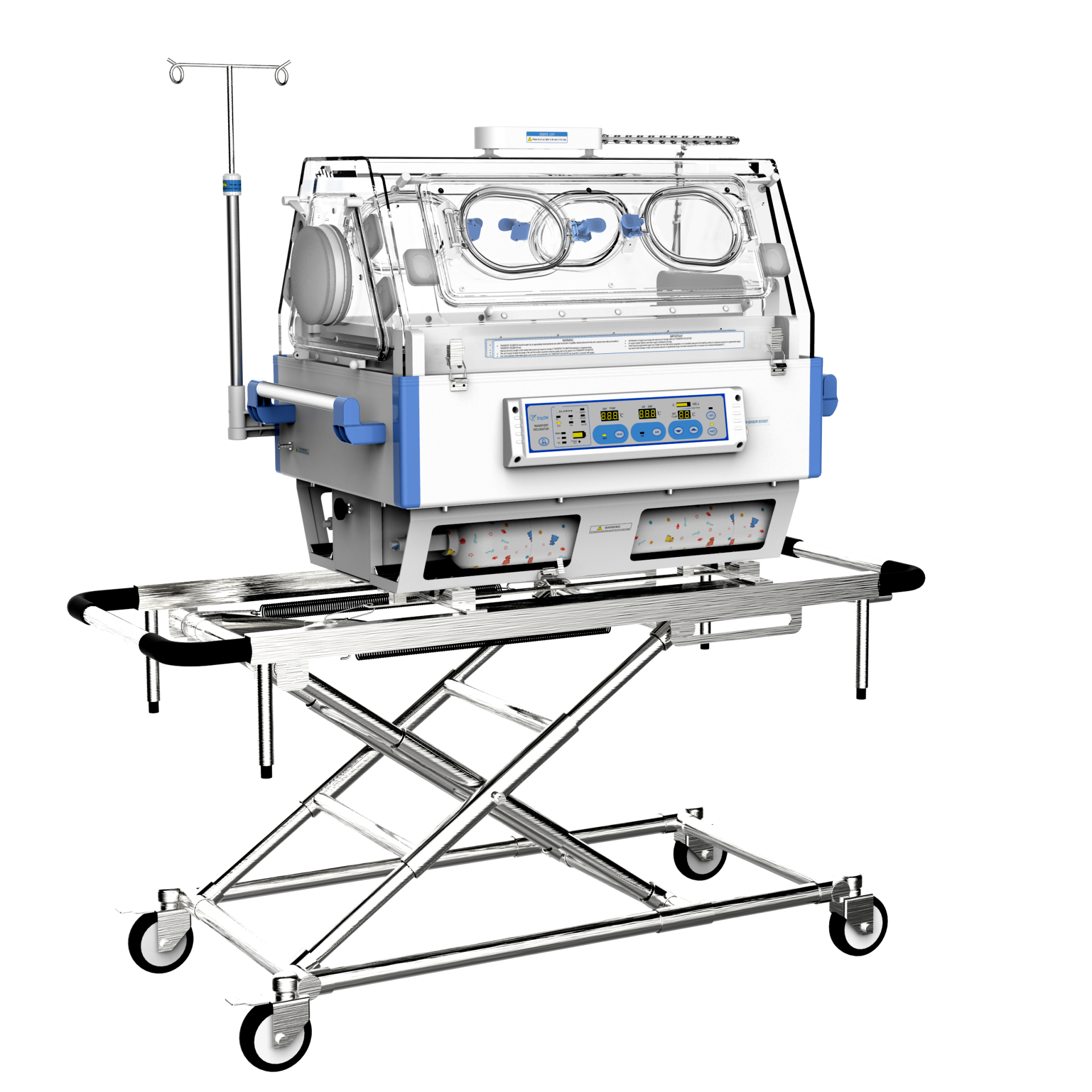

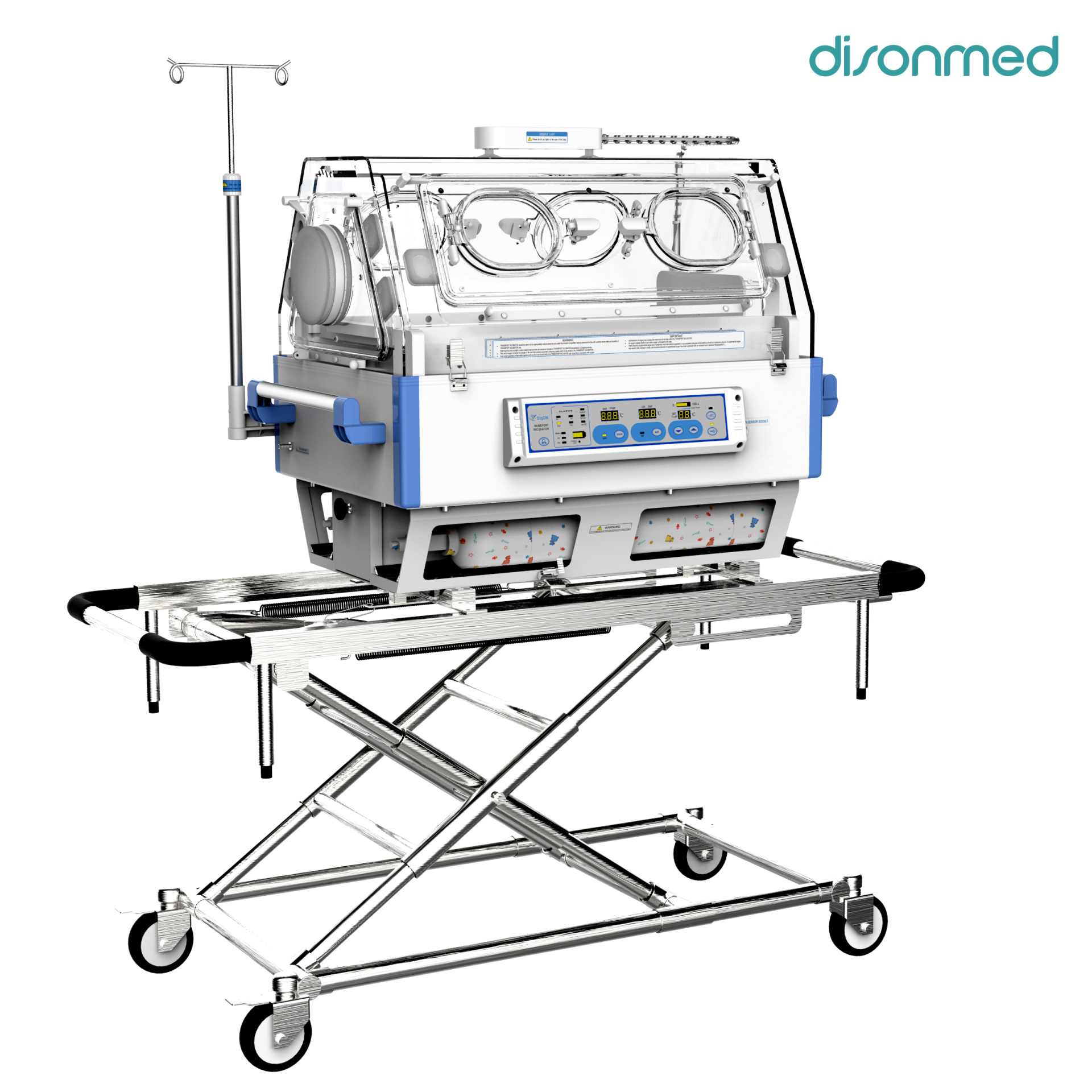

Transport Incubator BT-100

Function features

Air mode and baby mode controlled by micro-computer

Use AC Power and DC Power alternatively,DC 12V or DC 24V Power on the ambulance

Set temperature,air temperature,skin temperature and internal battery power are displayed by LED

Self-testing function,various failure alarms by audible and visual

Alarm function:

Power failure,Over temperature,Temperature devitation,Fan failure,Temperature sensor failure

Double wall hood with side door and front door,4 operating windoes and 2 iris ports,5 infusion seals

The infant bed can be pulled out from side door easily

Natural air flow humidity

The height od whole unit is adjustable

Oxygen supply system

LED observe light,adjustable brightness

Buil-in storage cabinet

Technical data

Power supply      AC110/220V  60/50Hz

Power input        450VA

Environment temperature            10℃～30℃

Operating condition  Environment relative humidity    30％～75％

Environment air velocity of flow  ＜1m/s

Air temperature control range         25℃～37℃ 37.1℃～38℃

Skin temperature control range        32℃～37℃  37.1℃～38℃

Air/Skin temperature sensor accuracy   ±0.3℃

Temperature fluctuation              ±1℃

Uniformity of mattress temperature     ≤1.5℃

Air temperature deviation alarm        ±3℃

Skin temperature deviation alarm       ±1℃

Warm-uptime                     ≤40min

Internal noise level                 ≤60dB(A)

Main battery                      DC12V 40AH,Li-ion battery

Charge time                       12hours

Battery use time                    2hours

Auxiliary battery                   DC8.4V 0.17AH,Li-ion battery

Mattress size                         63cm(L)*32cm(W)

Trough capacity                        1200mL

Air filter                         0.5μm

Transport and storage

Package

Each unit is packed in two plywood cases

(control unit):100*70*88cm

         N.W.:65Kg    G.W.:110Kg

Trolley:202*67*46cm

         N.W.:30Kg    G.W.:60Kg

Transport and storage

Environment temperature            -40℃～+55℃

Environment relative humidity    ≤95％

Atmospheric Pressure                  500～1060hpa

Standard configuration

Main body(including the Transparent hood,Double

hood,Control system,Infant bed,Water trough,Skin

temperature sensor,two Oxygen cylinders),I.V.pole,

Mattress,Observe light
