BB-200(Top Grade)

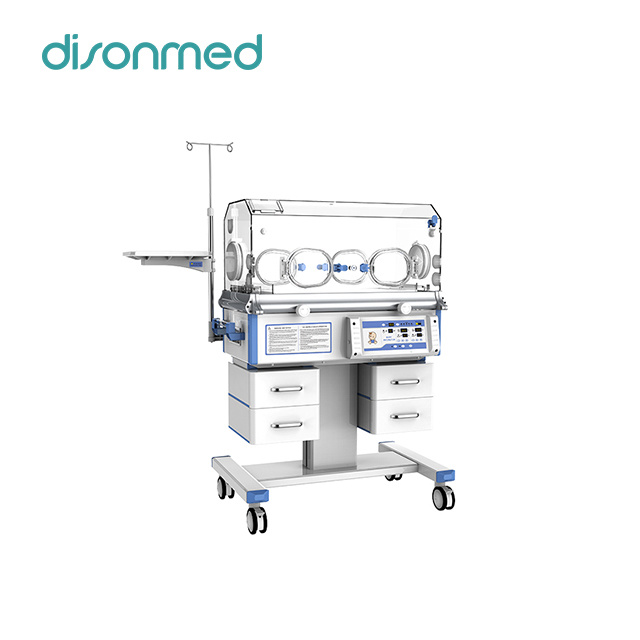

Baby Incubator BB-200(Top Grade)

Function features

Microprocessor based servo controlled temperature system

Control modes: Air mode and baby skin mode

Humidity display system

Set temperature, air temperature, baby skin temperature, humidity, timer and heating power

 are displayed separately by LED

Integral timer to record therapy time

Self - testing function, various failure alarms by audible and visual

Alarm function:

Power failure,Over temperature,Temperature devitation,Fan failure,Temperature sensor failure

>37° temperature set function

Triple protection for over temperature with separate cut off device, more safety system

The inclination of infant bed is adjustable

Single wall hood, 4 operating windows and 2 iris ports,5 infusion seals

Independent locking device for front door

RS232 connector, Oxygen inlet, 1 tray

Technical data

Power supply      AC110/220V  60/50Hz

Power input        650VA

Environment temperature            20℃～30℃

Operating condition  Environment relative humidity    30％～75％

Environment air velocity of flow  ＜0.3m/s

Air temperature control range         25℃～37℃ 37.1℃～38℃

Skin temperature control range        32℃～37℃  37.1℃～38℃

Humidity display range               0％～100％

Skin temperature sensor accuracy      ±0.3℃

Temperature fluctuation              ±0.5℃

Uniformity of mattress temperature     ≤0.8℃

Warm-up time(from 25℃)             ＜30min

Internal noise level                    ＜50dB(A)

Infant bed tilt angle                      ±10°

Mattress size                           65cm(L)*37cm(W)

Trough capacity                     1200mL

Air filter                             0.5μm

Transport and storage

Package

Each unit is packed in two plywood cases

(control unit and cabinet):112*66*98cm

         N.W.:80Kg    G.W.:110Kg

Hood:98*63*74cm

         N.W.:15Kg    G.W.:30Kg

Transport and storage

Environment temperature          -10℃～+70℃

Environment relative humidity    ≤80％

Atmospheric Pressure                500～1060hpa

Standard configuration

Main body(including the Transparent hood,Control

system,Infant bed,Water trough),I.V.pole,Mattress,

Drawers,Castors,Tray,Oxygen inlet
