BL-200D

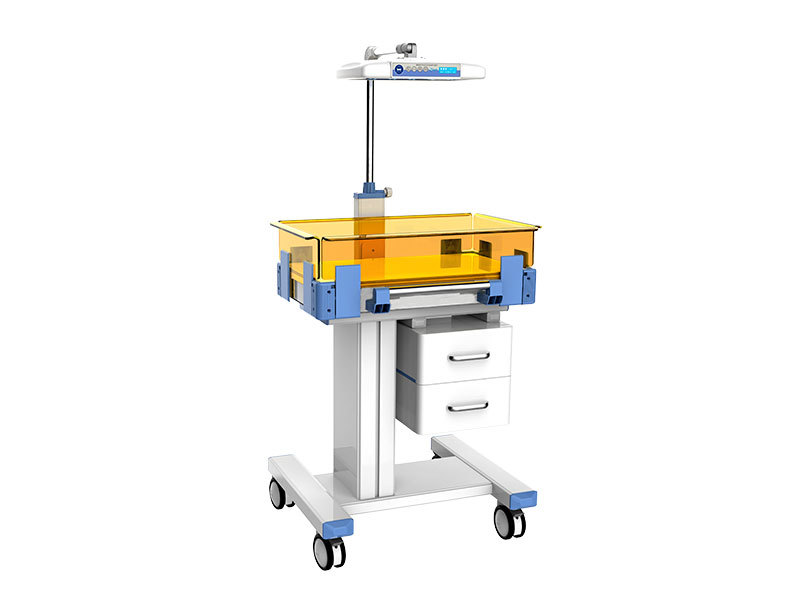

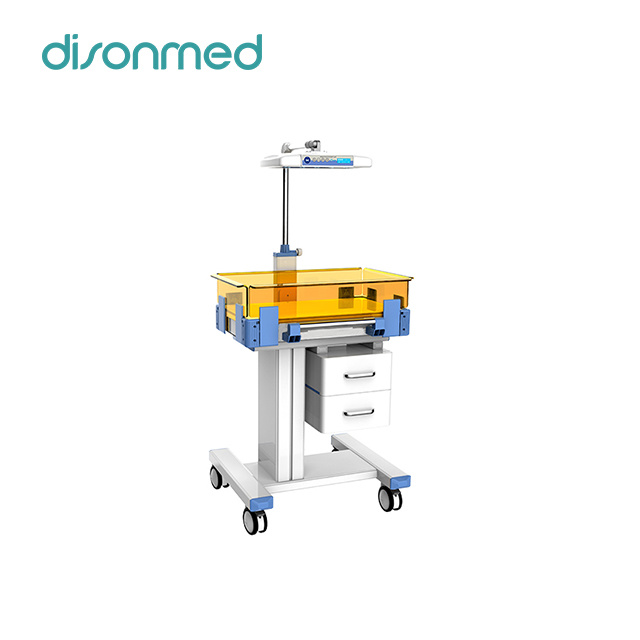

Infant Phototherapy Unit BL-200D

Function features

Double side phototherapy for more effective radiation: Upside phototherapy and downside

 phototherapy can be used separately

 Three levels to adjust the irradiation: Low, Medium, High

 LCD screen of upside phototherapy unit displays therapy time with timer and countdown

 Downside phototherapy unit adopts blue LED bulbs source and independent air cooling fan

 Upside phototherapy unit adopts big blue LED bulbs, uniform, efficient and long life

 Protect boards of infant bed could be folded down for clinical use

 Light head of upside phototherapy unit can be adjusted 360° horizontally and 180°vertically

 Stand column could be adjusted ±360°

 Anti-rusty aluminum alloy base

 High irradiation, easy to operation and move

 With drawers and lockable castors

 The height of upside phototherapy is adjustable

 Automatically record total used therapy time

 Technical data

Power supply:                               AC 100～240V±22V ,50/60Hz±1Hz

Power input:                                                    45VA

Blue light wavelength:                                    440nm～480nm

Life time of LED bulbs:                                   ≥20000 hours

Height of upside phototherapy adjustable range: 1300mm~1600mm

                                                   ( From light head to floor)

Downside Phototherapy Unit:

Highest total irradiance for bilirubin on effective area : 1500μW/cm2

Standard configuration

Main body (Including the LED radiant source,

Control system,Upside Phototherapy，Down

side Phototherapy， Infant bed, Bracket),

Mattress,Transparent foldable protector,

Castors,Two drawers.

Transport and storage

Package

Each unit is packed one case

Size:80*75*134.5cm

N.W.:43kg   G.W.:68kg

Environment Temperature:-10℃~ +55℃

Environment Relative Humidity: ≤95%

Atmospheric Pressure: 500～1060hPa

Working environment

Ambient temperature: +18℃～+30℃

Relative humidity: 10%～85%

Atmospheric pressure: 700hpa～1060hpa
